How to Reduce 3D Model File Size Without Losing Important Details

When people say a model is too big, they can mean three different things, and each has its own fix. The first is download size: the bytes that travel over the network. The second is memory: the space the geometry and images take once they are unpacked for the GPU. The third is draw cost: how much work the renderer does every frame. A change that improves one often leaves the others untouched.

Textures show the difference most clearly. A JPEG can compress to a couple of megabytes on disk, yet the GPU needs the raw pixels, roughly four bytes each. A 4096 × 4096 image therefore occupies about 64 MB of memory, and about 85 MB with its mip levels, however small the file was. Lowering the JPEG quality would save download time but leave memory almost unchanged. Reducing the pixel dimensions helps both.

GLBKit helps you measure and compare. It does not compress, decimate or optimize files for you, so the changes themselves happen in your modeling tool or an optimizer, and the viewer is where you check that nothing important was lost.

A GLB is a small JSON description followed by a binary block. The JSON is rarely more than a few hundred kilobytes. Nearly all the weight sits in two places: the binary geometry and the embedded images.

Each vertex stores several values. A position is three 32-bit floats, 12 bytes. A normal adds another 12, and one set of texture coordinates adds 8, so a typical vertex costs about 32 bytes before tangents. Each triangle then needs three indices, 4 bytes apiece once a mesh has more than about 65,000 vertices. For a closed mesh the triangle count is roughly twice the vertex count, which gives a rough rule of about 28 bytes per triangle. A model with 200,000 triangles carries around 5.6 MB of raw geometry before any compression.

Images are stored in compressed form, PNG or JPEG in core glTF, so one photographic texture can outweigh the entire mesh. That is why textures are the first thing to check on most web assets.

Never start by simplifying. Start by finding out which cost is actually large, because optimizing the wrong part is the most common way to lose quality for no gain.

1. 1

   Load the model and run the Analyzer

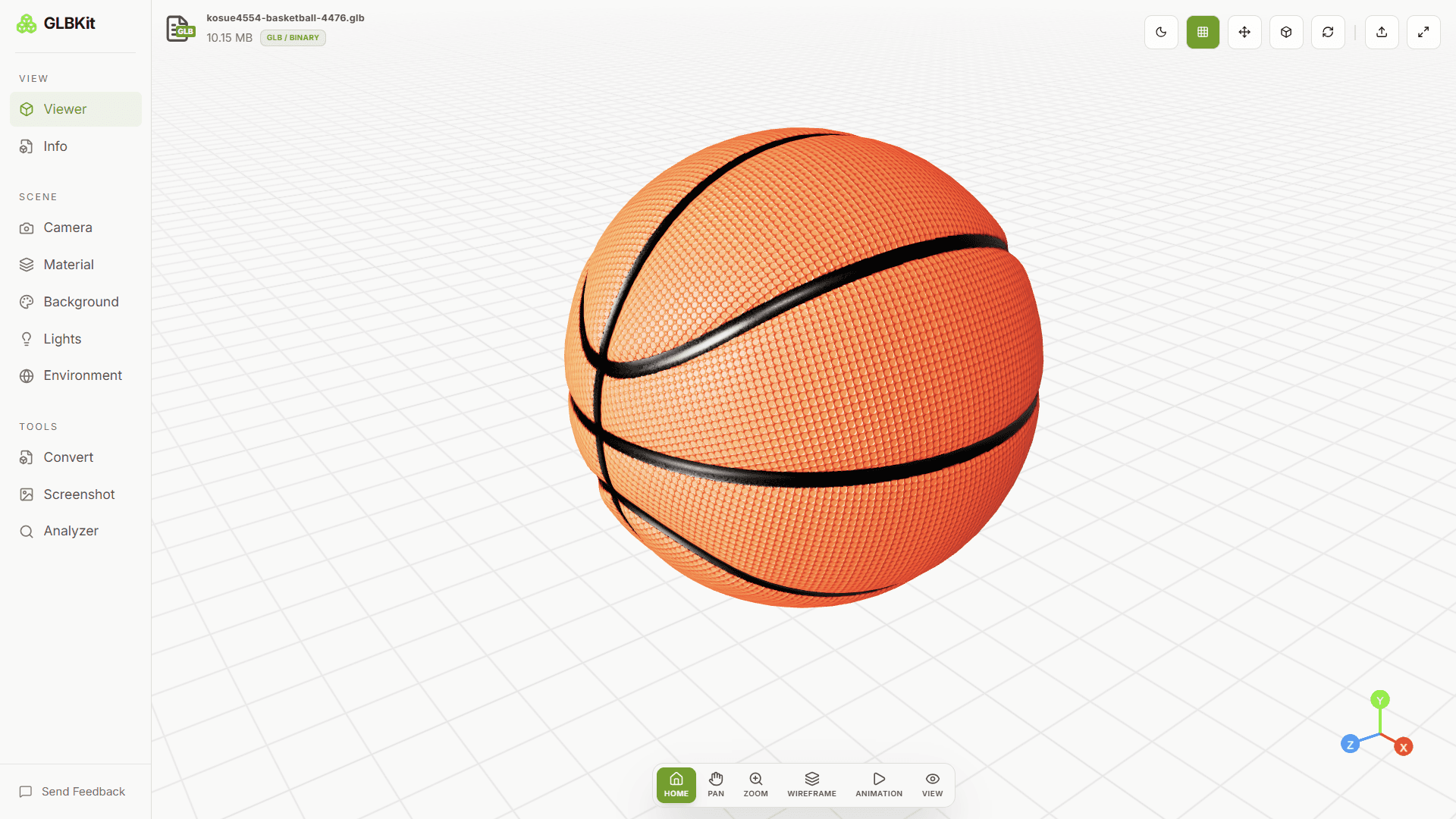

   Open the model in the 3D model viewer, then the Analyzer. Note the file size, then record Triangles, Meshes, Unique Materials, Unique Textures, Total Pixels and the memory estimates. These numbers are your baseline.

2. 2

   Find the dominant cost

   Check the Dimensions list first. A 4096 pixel image on a small prop is the usual culprit. Then look at Triangles and Meshes, and compare the geometry and texture memory estimates. Fix the largest contributor first.

3. 3

   Make the change outside GLBKit

   GLBKit measures and previews; it does not compress or decimate. Make the change in your modeling tool or in an optimizer such as glTF Transform or gltfpack, then export again.

4. 4

   Capture a matching before and after

   Use the same Camera preset, Lights, Environment, Screenshot resolution and background for both versions, so the two images differ only in the model.

5. 5

   Compare numbers and picture

   Load the optimized file and read the Analyzer again, then view the two screenshots side by side. Accept the result only if the key details survive and the numbers moved the way you intended.

The Analyzer turns a model into numbers. Each pattern below points at a likely cause.

The Memory group gives separate estimates for geometry and textures. Compare them: the larger one is where to start. Treat both as planning figures rather than measurements, and read them the same way before and after so the comparison stays fair.

Pixels grow with the square of the dimension, so a small change in size is a large saving. Halving a texture from 4096 to 2048 pixels on each side removes three quarters of its pixels, and its memory with them. Going from 2048 to 1024 does the same again. On a prop that fills a small part of the screen the extra resolution is rarely visible, which is why the Dimensions list is the most actionable item in the Analyzer.

Core glTF allows PNG and JPEG. PNG is lossless and suits flat colors, masks and transparency, but it is large for photographic detail. JPEG is far smaller for photographic color maps, has no alpha, and adds blocky artifacts that are especially harmful in normal maps. WebP, available through a glTF extension, is often smaller than both. KTX2 with Basis Universal goes further: the data stays compressed on the GPU, which cuts memory as well as download size. WebP and KTX2 only work where the viewer supports the extension, so test before you commit.

Housekeeping saves more. Pack separate grayscale maps into one image: glTF reads roughness from the green channel and metalness from the blue channel of one texture, and ambient occlusion is commonly stored in the red channel of the same image, so three maps can become one. Remove maps a material does not use, such as an emissive map that is entirely black. Reuse one image across materials instead of storing near-identical copies. The glTF specification defines which channel each map reads.

A GLB holds the same geometry and images as the glTF it came from, in a single file, so converting changes the packaging rather than the content. The one real saving appears when a glTF embeds its data as base64 text. Base64 inflates data by about a third, so storing the same bytes directly in a GLB is roughly a quarter smaller. The ZIP to GLB converter does that packaging, but it does not compress anything. The GLB vs GLTF guide covers the trade-offs.

On the server, gzip or Brotli helps the JSON and uncompressed geometry, but it cannot shrink JPEG and PNG images, which are already compressed. What users actually feel is transfer time, which is easy to estimate: seconds are roughly megabytes times eight, divided by megabits per second.

There is no universal target size. Work backwards from the audience and the use. Skip optimization altogether when the file is an archive master, when it already loads fast enough for the people who need it, or when its size comes from detail the use depends on.

Optimization is only finished once you have shown that the model still looks right. Capture the original and the optimized version with the same Camera preset, Lights, Environment, background and Screenshot resolution, so the two images differ only in the model. The screenshot guide explains each of those settings. View the images side by side at full size and zoom into the places that matter: edges, text and thin parts.

Then read the Analyzer again. Triangles, Meshes, Unique Textures and the memory estimates should have moved in the direction you intended, and nothing present before, such as a material, a texture or an animation clip, should have gone missing. If a texture has vanished, Why Are Textures Missing From My 3D Model? explains the usual causes.

Write the acceptance test before you start: three or four angles and details that must survive. It stops you optimizing past the point where anyone would notice.
